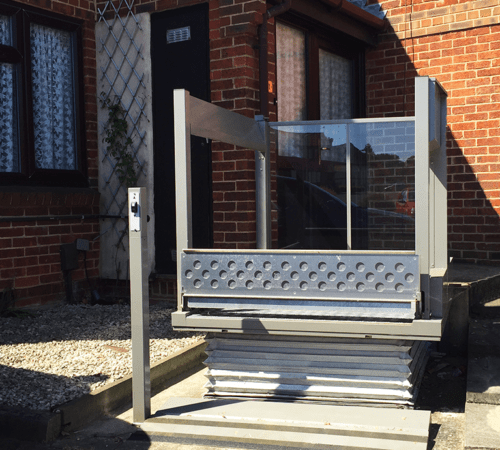

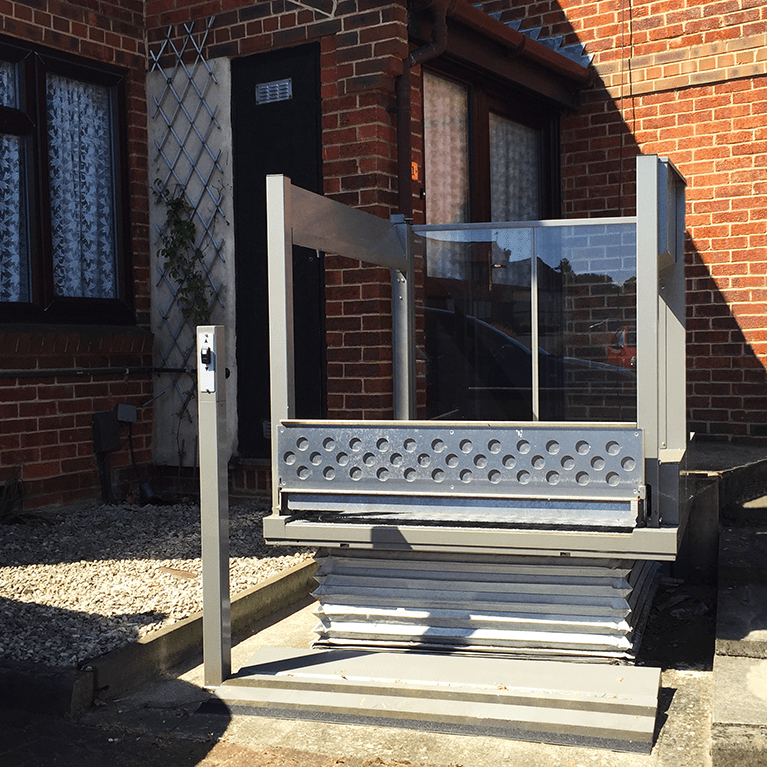

TSL 1100W Step Lift |

Perfect for:

Perfect for homes where steps prevent independent disabled access to an entrance, this extra wide platform step lift is designed to accommodate heavy, electric wheelchairs, mobility scooters, and their users, providing a simple, cost-effective and practical solution.

HIGHLIGHTS

With its extra wide platform and a large capacity of 385 kg, the TSL 1100W is the ideal solution for bariatric users, mobility scooters and heavy wheelchairs.

Large platform size
Large capacity
Self-contained unit
Internal and external use

Download brochure Brochure by post

Designed and manufactured in Britain with the Trustmark guarantee and installed by experts you can trust

12 months parts and labour warranty, as standard with options for extended warranty

Lifetime testing to ensure reliability

Standard Features

Safe and secure – features an automatic wheelchair arrestor ramp
Large capacity – capacity of 385 kg with a 1100 mm wide platform
Can easily be re-sited
Self-contained unit which is easy and quick to install, typically within a day
Reliable – trickle charge battery operated
Durable for outdoor use

Benefits

The extra wide 1000mm platform and a large capacity of 385 kg make this the ideal solution for bariatric users, mobility scooters and heavy wheelchairs
Can be used internally and externally
Reliable and easy-to-use
Perfect for homes where steps prevent independent wheelchair access to an entrance.
Allows users to travel safely and comfortably
Easy-to-use controls and an automatic arrestor ramp secure the wheelchair safely on the platform
Attractive and unobtrusive appearance, with grey powder coating to the carriage as standard and a polycarbonate-infilled upper-level gate when the lift travel exceeds 290 mm
Quick installation – within a day
Safe and secure – features an automatic wheelchair arrestor ramp
Can easily be re-sited
Self-contained unit which is easy and quick to install, typically within a day
Durable for outdoor use

Adding a personal touch

As we design and build the TSL 1100W Step Lift here in Cheshire, we have the freedom and flexibility to tailor the lift to you with:

Bridging steps 900mm wide
Radio control enabler
Remote up/down control
Upper gate and interlock
Pit installation (indoor only)
Steel or plexi-glass side infills
Stainless steel in lieu of grey powder coated finish

Technical Specification

Lift Size: Internal platform width 1100mm
Number of Floors/Travel: Maximum height served: 1000 mm or 920 mm when in a pit
Usage & Suitability: Can be used externally and internally. For heavy wheelchair, mobility scooters and bariatric users. If you require a lift to carry a wheelchair and attendant or for standing use only, please refer to our Melody 1 and 3 lifts.
Technical Compliance: BS 6440:2011 and CE Mark
Load Capacity:385kg (60 stone)
Installation: One day
Operation: Constant pressure controls
Power Supply:220 / 240V~50 / 60 Hz-13 A single phase.
Low voltage control system:24V DC
Drive System: Hydraulic scissor mechanism
Safety: Automatic wheelchair arrestor mechanism and battery operation
Speed:06m/sec
Operating temperature: -10 degrees C to 40 degrees C
Warranty: 12 months

For your peace of mind

Designed and manufactured in Britain with the Trustmark guarantee and installed by experts you can trust
12 months parts and labour warranty, as standard
Options for extended warranty
Lifetime testing to ensure reliability
Building control approval obtained for every installation
Complies with all relevant safety standards
Lifetime testing to ensure reliability
Made to meet the highest standards in quality and safety, for many years to come
Reliable and robust proven technology

No-Fuss installation

The TSL 1100W Step Lift can be installed indoors or outdoors in one day.

Our trained surveyor will survey your home and provide you with a written, no obligation quotation, free of charge. Should you decide to proceed, we can carry out all the necessary preparatory works and manage the full installation hassle-free.
